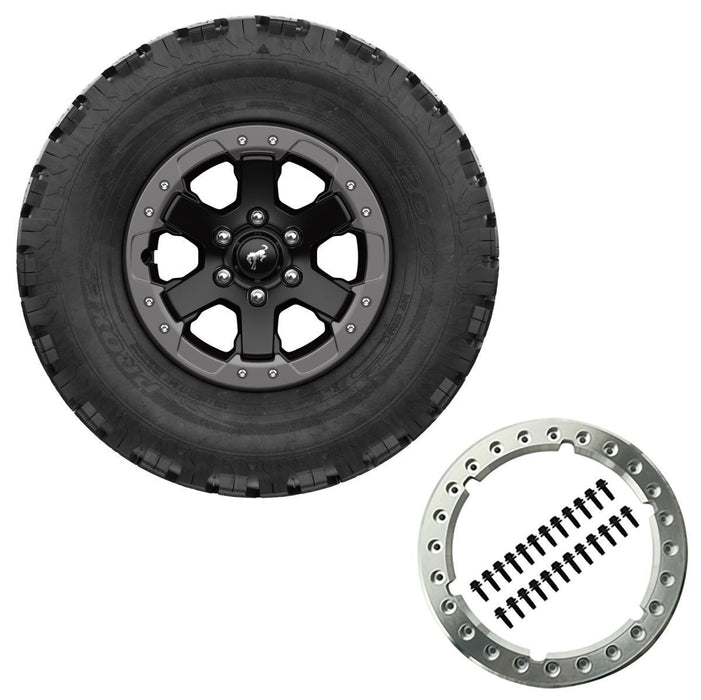

Ford Racing 2021 Bronco 17x8.0 Beadlock Carbonized Gray Badlands Wheel Kit (frpM-1007-DC17B)

DESCRIPTION

FRPP uses the Society of Automotive Engineers (SAE) and American Society for Testing and Materials (ASTM) Standars: SAE J175 and J328 for impact and fatigue testing and ASTM B368 for chrom testing. These standards define a series of tests that ensure the safety and finish of a wheel. THESE TESTS ARE THE MINIMUM STANDARD USED TO DEFINE THE ENDURANCE OF FRPP WHEELS. Impact Testing: This test simulates a curb impact on the side of a tire/wheel assembly. During testing, a tire/wheel assembly is mounted at a 13-degree angle to a test fixture by the hub. A weight is dropped from 9 inches onto the assembly at the tire/wheel intersection. The mass of the weight is determined by a formula, using the vehicle weight. Dynamic Cornering Fatigue Testing: This test simulates lateral loads applied to a wheel by the vehicle. During testing, a wheel is clamped to a fixture by the front face and a constant bending moment is applied through the hub. A wheel of new design will run a minimum of 1,000,000 cycles before approved. The load applied is determined by a formula, using the vehicle weight. Dynamic Radial Fatigue Testing: This test simulates axial loads applied to a wheel by the vehicle. During testing, a tire/wheel assembly is mounted to an axle by the hub. A large drum drives the assembly while a load is applied perpendicular to the tire patch. A wheel of new design will run a minimum of 5,000,000 cycles. The load applied is determined by a formula, using the vehicle weight. Chrome Quality Testing: Copper-accelerated acetic acid-salt spray, commonly known as CASS testing, is the standard method used to test the corrosive performance of copper/nickel/chromium-plated wheels. The test is performed in a sealed chamber with a highly acetic spray directed onto the wheel for a predetermined amount of time, usually 66 hours.

FEATURES

- Fits: 2021-2023 Bronco
- The Bead Lock Wheel Kit includes everything needed to upgrade your Bronco to have off-road bead-locking capability
- 17" x 8.0" wide
- Use with M-1180-B TPMS Sensor and Tool kit
- Suitable for Overlanding
- Tire not included

Kit Includes:
- 17" Gloss Black bead lock capable wheel
- Standard trim ring with Carbonized Gray finish
- As found as optional on Badlands series Bronco
- Ford Performance Bead-lock ring kit M-1012-F15RB
- Bronco Center Cap

Note: Bead lock configuration is for off-road use only

Finish	Aluminum
WARNING CA Proposition 65	No
Wheel Size	17x8.5
