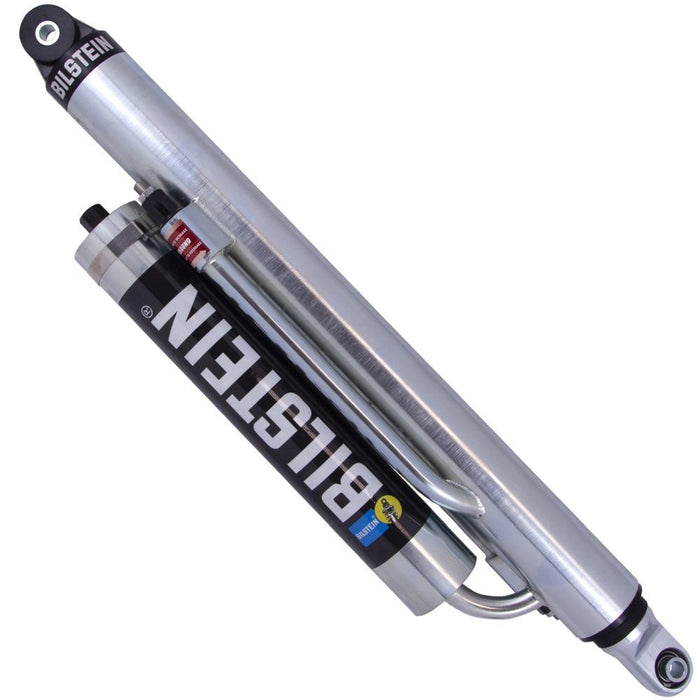

Bilstein M 9200 (Bypass) 3-Tube 14in Stroke Zinc Plated Left Side Monotube Shock Absorber (bil33-269580)
by Bilstein
Original price
$1,050.42
-
Original price
$1,050.42
Original price
$1,050.42
$1,050.42
-
$1,050.42
Current price
$1,050.42
DESCRIPTION
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
FEATURES
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
VEHICLE FITMENT
No Applications
SPECIFICATIONS
| Body Design | 3-Tube Bypass Screw Top |
| Body Diameter (ID) | 60mm |
| Boot Included | N/A |
| Collapsed Length (IN) Rounded | 25 |
| Collapsed Length (IN) | 24.5 |
| Collapsed Length (MM) | 622.3 |
| Compression @0.52m/s | Custom |
| Extended Length (IN) Rounded | 39 |
| Extended Length (IN) | 38.5 |
| Extended Length (MM) | 977.9 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5in |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | N/A |
| Part Type | Shocks / Struts |
| Position | Left |
| Prop 65 Warning | Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Bypass) |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
SKU bil33-269580
Fitment Table
Availability:
In stock
