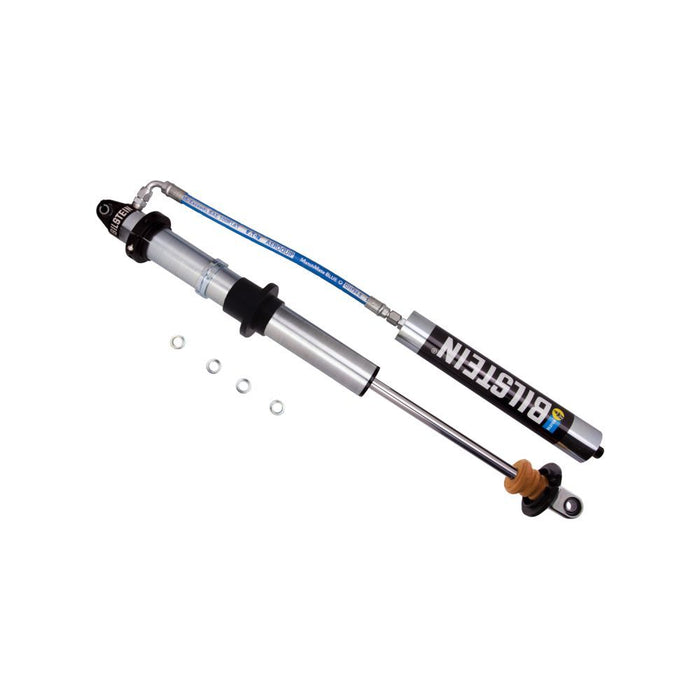

Bilstein M 9200 (Coilover) 60mm Shock Absorber (bil33-244501)
by Bilstein
Original price
$812.38
-
Original price
$812.38
Original price
$812.38
$812.38
-
$812.38
Current price
$812.38
DESCRIPTION
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
FEATURES
- Available in 46mm and 60mm monotubes
- Threaded body with dual-rate coilover hardware
- Multiple stroke lengths available ranging from 8" to 16"
VEHICLE FITMENT
No Applications
SPECIFICATIONS
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 60mm |
| Boot Included | N/A |
| Collapsed Length (IN) Rounded | 27 |
| Collapsed Length (IN) | 26.5 |
| Collapsed Length (MM) | 673.1 |
| Compression @0.52m/s | 1000 |
| Extended Length (IN) Rounded | 43 |
| Extended Length (IN) | 42.5 |
| Extended Length (MM) | 1079.5 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5in |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | N/A |
| Part Type | Shocks / Struts |
| Prop 65 Warning | Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.52m/s | 2550 |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Coilover) |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
SKU bil33-244501
Fitment Table
Availability:
In stock
