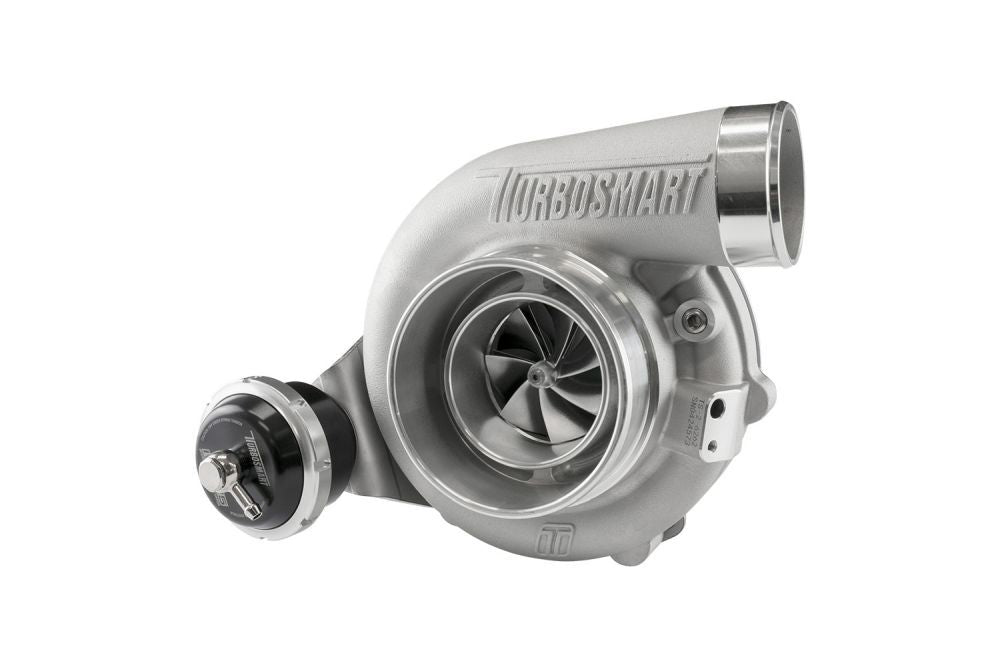

Turbosmart Water Cooled 6262 V-Band Inlet/Outlet A/R 0.82 IWG75 Wastegate TS-2 Turbocharger (turTS-2-6262B-VB082I)
by Turbosmart
Save 10%
Original price
$2,477.72
Original price
$2,477.72
-
Original price
$2,477.72
Original price
$2,477.72
Current price
$2,229.95
$2,229.95
-
$2,229.95
Current price
$2,229.95
DESCRIPTION
Smaller, Lighter and Faster—The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.
Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.
Available In
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various A/R options
Internal and external wastegate options are available
FEATURES
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal A/Rs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on centre housing
SPECIFICATIONS
Compressor Inlet: 4? / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25?)
Turbine Exducer: 62mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00?)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
SUPPLIED WITH
1 x Turbosmart Performance Turbocharger
1 x Turbosmart Internal Wastegate Mounting Bracket
1 x Turbosmart GenV IWG Actuator
2 x Weld Flanges (Turbine inlet & outlet)
2 x V-Band Clamps (Turbine inlet & outlet)
1 x Water Feed Fitting Kit
1 x Oil Drain Gasket
Smaller, Lighter and Faster—The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.
Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.
Available In
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various A/R options
Internal and external wastegate options are available
FEATURES
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal A/Rs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on centre housing
SPECIFICATIONS
Compressor Inlet: 4? / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25?)
Turbine Exducer: 62mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00?)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
SUPPLIED WITH
1 x Turbosmart Performance Turbocharger
1 x Turbosmart Internal Wastegate Mounting Bracket
1 x Turbosmart GenV IWG Actuator
2 x Weld Flanges (Turbine inlet & outlet)
2 x V-Band Clamps (Turbine inlet & outlet)
1 x Water Feed Fitting Kit
1 x Oil Drain Gasket
SKU turTS-2-6262B-VB082I
Fitment Table
Availability:
In stock
